Water Bath Incubator Shaker Manufacturers India - EIE Pharmatest

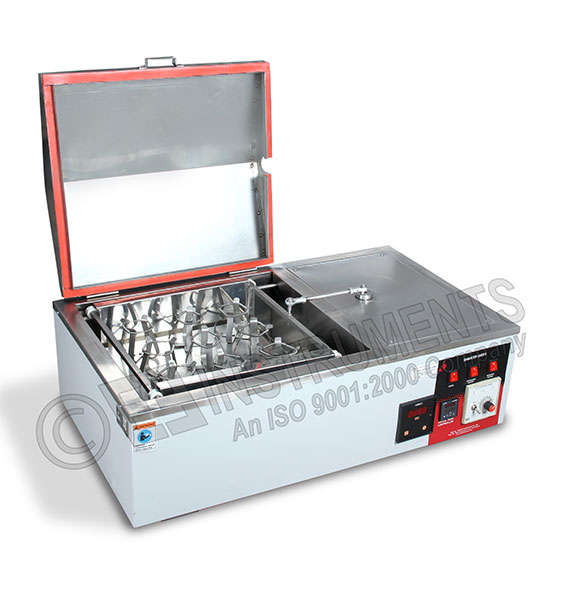

Waterbath Incubator Shaker (Shaking Waterbath) (EIE-405)

Standard Model (EIE – 405DP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 405DG)

Inner Chamber made of mirror polished Stainless Steel (S.S.316) material & Outer body is fabricated from S.S.304 matt finished material.

Applications

For procedure requiring constant shaking, uniform temperature & controlled atmosphere

Technical Specifications

  • Construction : Double walled
  • Inner chamber : Polished stainless steel material S.S. - 304 grade
  • Exterior body : Fabricated from Mild steel material
  • Paint : Powder coating
  • Insulation : Glass wool insulation to prevent direct thermal heat loss
  • Temperature Range : From 5 °C above ambient to 99 °C
  • Heating : Open type Air heaters placed at the bottom of the inner chamber.
  • Temperature controller : Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator
  • Temperature Stability : ± 0.5 °C
  • Temperature accuracy : ± 0.5 °C
  • Heater control : By control switch installed in the control panel
  • Heater Status : Control indication lamp
  • Shaking : Achieved by PMDC Geared Motor
  • Motor RPM : 40-150 RPM
  • Motor speed display : Digital RPM Indicator (Optional)
  • Speed control : By electronic Speed Regulator
  • Shaking racks material : Stainless steel material S.S. - 304 Grade
  • Bath chamber Size : 15” x 16” x 8” cm /20” x 18” x 8”(W x D x H)
  • Bath Volume : 30 Liters
  • Power consumption : 02 KW
  • Operates on : 230 Volts, 50 Hz, Single phase, AC Supply
  • Supplied complete with Top Stainless Steel Pyramidal Lid
Digital/Powder coated Model No Digital/GMP  Model No To hold capacity
EIE-405DP6 EIE-405DG6 6 flasks of 100 ml
EIE-405DP12 EIE-405DG12 9 flasks of 250 ml
EIE-405DP24 EIE-405DG24 16 flasks of 250 ml
EIE-405DP30 EIE-405DG30 18 flasks of 250  ml

D : Digital   |   P: Powder coating   |   G: GMP

Note: Custom sizes for accommodation of different capacity flasks are also available.

Optional accessories at extra cost

  • 21-CFR (PART – 11) Compliance dedicated PC Software
  • Data Logger – 4/8/16 channels with sensors
  • Audio visual alarm for temperature Overshoot/Undershoot
  • Timer facility
  • Programmable controller with RAMP Setting facility
