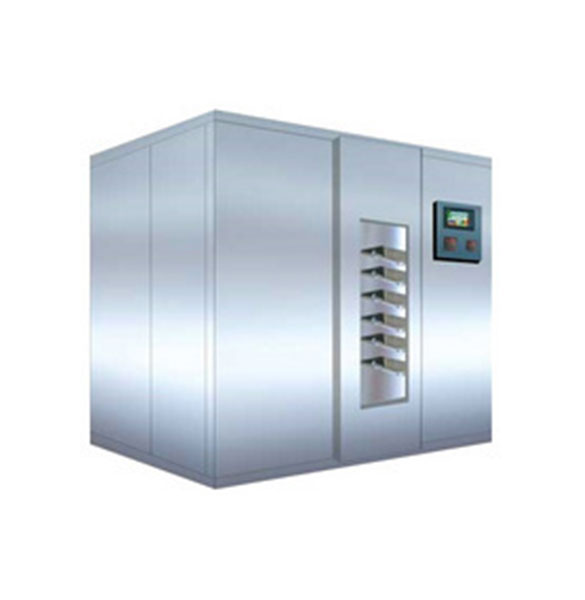

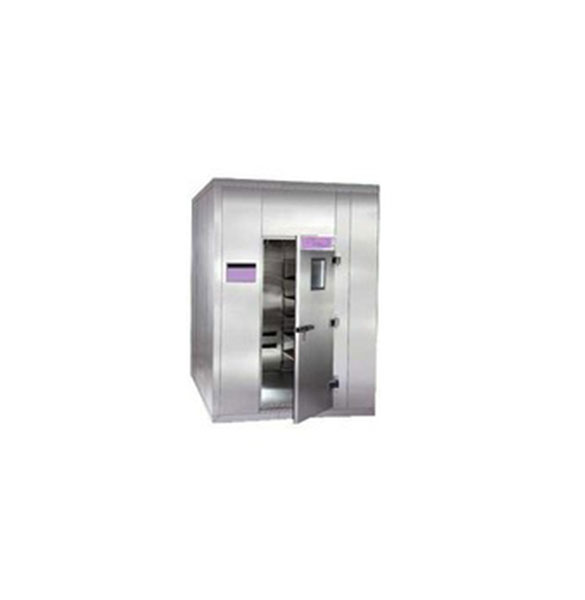

Walk-In Stability Chamber (EIE – 106W)

Standard Model (EIE – 106WP)

Inner Chamber made of mirror Polished Stainless Steel (S.S. 304) material & Outer body is fabricated from PRE-FABRICATED PUFF Panels

GMP Model (EIE – 106WG)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body is fabricated from MATT FINISHED S.S. – 304 Material

Introduction

EIE Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.

Salient Features

  • CE Certified
  • Light weight Sandwich panel
  • Fulfills storage conditions of 25° C - 60% RH, 40° C - 75% RH, 30° C - 65% RH, 25° C - 40% RH, 30° C - 35% RH
  • Designed for testing product shelf – life, packing and electronic test.
  • Specially designed to meet ICH, WHO & USFDA requirements.

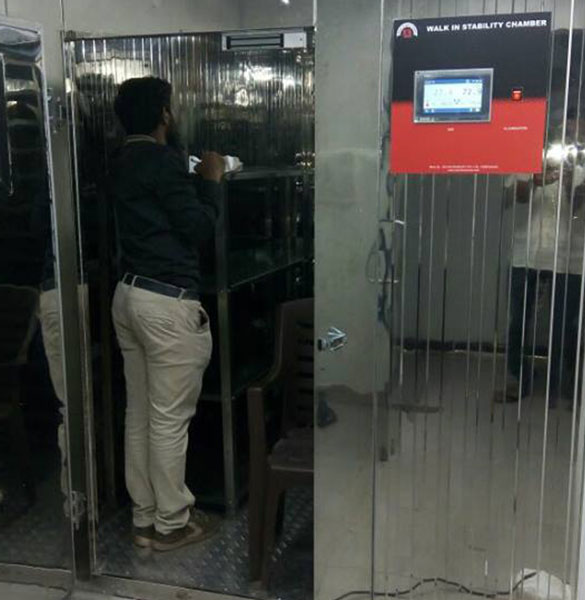

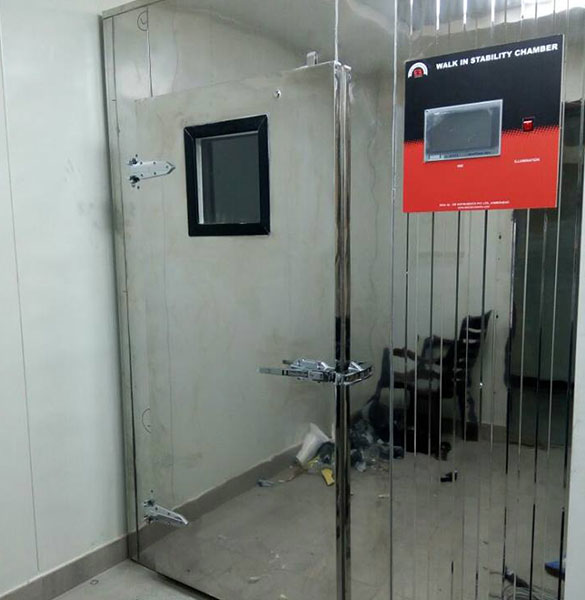

  • Main Door with observation window to inspect samples
  • Electrical wiring as per CE Compliances
  • Illuminated Working area
  • Password protected door access and monitoring
  • U-Shaped tubular heaters as heating element.
  • Non Condensing steam injection type humidity system with standby heater & auto switch over
  • Mains-Fail Detection & Automatic Change Over to Battery/Inverter
  • High speed Ethernet communication

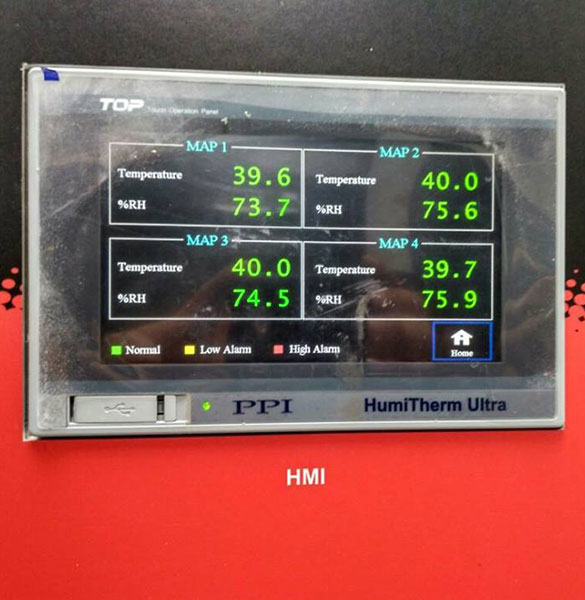

  • Uniformity module with 4 + 4 RH & Temp Sensors

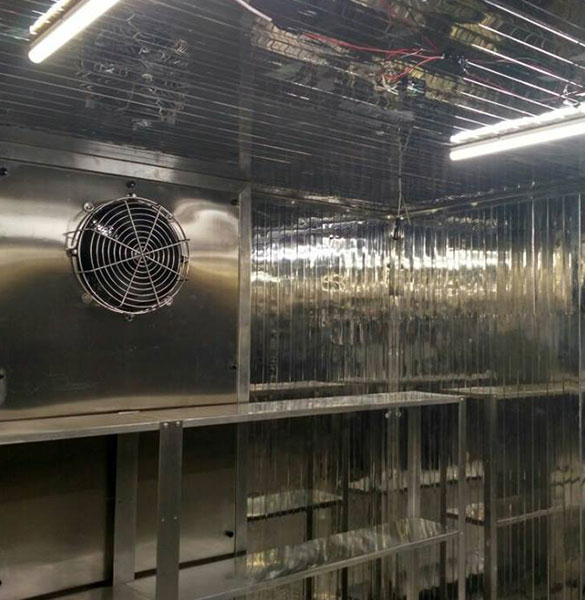

  • Forced air circulation for uniform temperature and RH Distribution
  • Ensures smooth air-flow pattern to improve the Temp & Humidity distribution across the chamber
  • GSM module for SMS Alert (Optional)
  • Serial port for PC interface with 21-CFR Compliant software (Optional software)
  • Standby Humidity control system and Standby refrigeration system (Optional)

Humidity System

Non-condensing type Steam injection system & reservoir tank with water level arrangement with indicator.

Cooling System

Hermetically sealed compressor, which is CFC free and eco-friendly, utilizes the refrigerant (R-134A gas) to maintain chamber temperature within specified range.

Technical Specifications

  • Temperature Range : 20 °C to 70 °C
  • Temperature Accuracy : ± 0.2 °C
  • Temp Uniformity : ± 1°C
  • RH Range : 40% RH to 95% RH
  • RH Accuracy : ± 2% RH
  • RH Uniformity : ± 3% RH

As per ICH Guidelines

  • At 25°C : RH = 60%
  • At 30°C : RH = 65%
  • At 30°C : RH = 75%
  • At 40°C : RH = 75%

Trays for samples

  • Removable perforated trays
  • Can withstand heavy load
  • Offer better air circulation

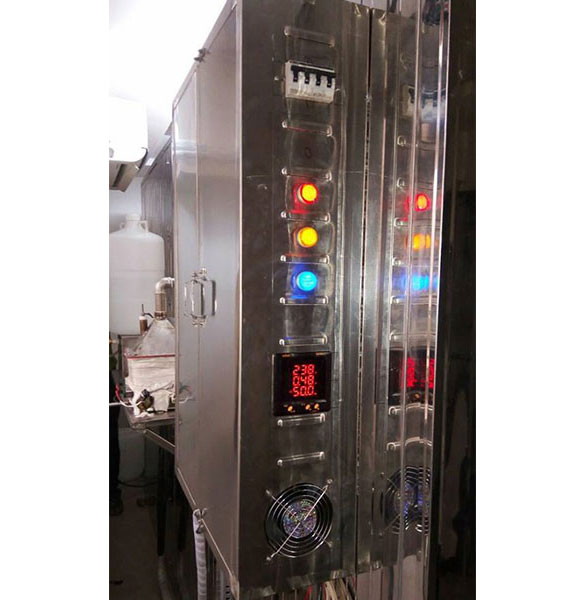

Safety Features

  • High temperature safety cut off
  • Low water level boiler cut off
  • Electrical overload cut off
  • Time delay for compressor switch ON
  • Electrical circuit breaker

Optional accessories at extra cost

  • 21-CFR Compliance software with PC Communication

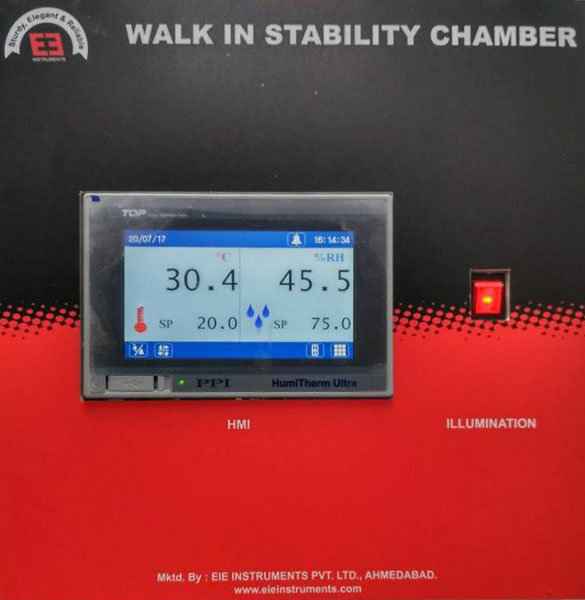

  • Highly advanced HMI & PLC Control system
  • GSM Alert through SIM Card
  • Data logger with 4 temperature + 4 Humidity sensors
  • Spare RH Sensor for validation purpose
  • Spare PT-100 Sensor for validation purpose
  • Standby Humidity System
  • Standby Refrigeration System
  • Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
  • On-Site Validation (mapping) for 24 hours on Empty, Half and Full load condition

Selection Guide

Working chamber sizes (Meter) (W X D X H) Volume (Liters) No of trays Product codes
2.0 x 1.0 x 2.0 4000 8 EIE-106WG40
2.0 x 1.5 x 2.0 6000 12 EIE-106WG60
2.0 x 2.0 x 2.0 8000 24 EIE-106WG80
2.0 x 2.5 x 2.5 12500 28 EIE-106WG125
2.5 x 3.0 x 2.5 18750 36 EIE-106WG187
3.1 x 3.0 x 2.5 23250 40 EIE-106WG232
3.7 x 3.5 x 2.5 32500 66 EIE-106WG325
3.9 x 3.9 x 3.0 45000 84 EIE-106WG450
3.85 x 5.2 x 2.5 50000 100 EIE-106WG500
6.4 x 5.0 x 2.5 80000 200 EIE-106WG800

W : Walk-In   |   G : GMP   |   P : Powder coating

Note: Other sizes are available on request.
