Vertical Autoclave (EIE – 206)

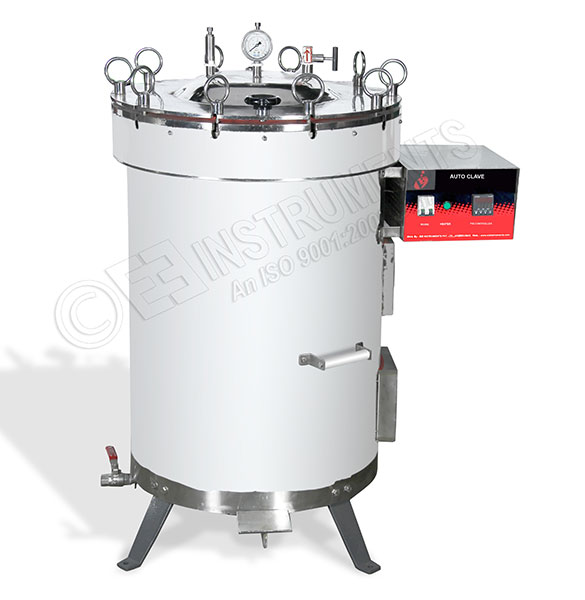

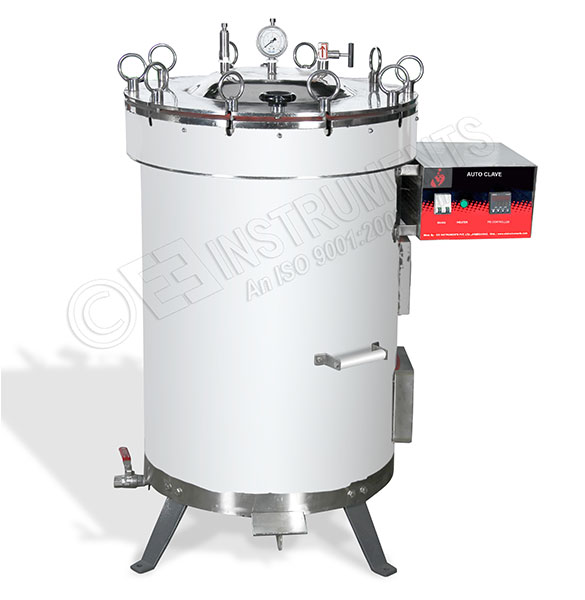

Semi Automatic Model (EIE – 206SA)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

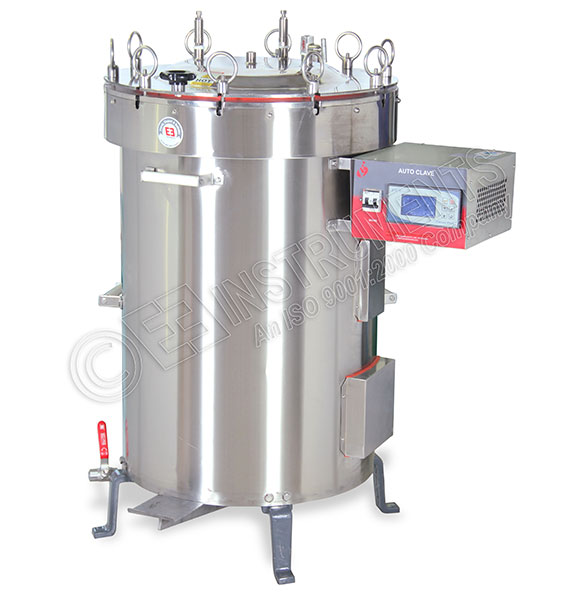

Fully Automatic GMP Model (EIE – 206FA)

Inner Chamber made of mirror polished Stainless Steel (S.S.304) material & Outer body is fabricated from S.S.304 matt finished material.

Salient Features

  • Semi Automatic operation;
  • Manual steam exhaust at the end of test cycle
  • Single chamber for steam and water
  • Working chamber fabricated from S.S. – 304
  • Exterior body is fabricated from MS Material
  • Powder coated in attractive shades
  • Lid, flange & bottom sheet also made of stainless steel.
  • Joint less silicon gasket
  • Heavy duty industrial flange heater (As per selected size)
  • Microprocessor based Digital Temperature Indicator cum Controller
  • PID Controller Controls temperature/pressure precisely at set value
  • User adjustable in-built digital timer
  • Pressure range                   : 15 to 22 PSI, factory set at 15 PSI
  • Temperature Range          : 121°C to 125 °C
  • Temperature Accuracy     : ± 0.5 °C
  • Temperature sensor         : PT-100
  • Lid fitting pressure gauge : 0-30 PSI
  • Hydraulically tested at      : 60 PSI
  • Safety valves                       : 02 Mechanical Valves, 01 Manual release valve
  • Supplied with Calibration certificate with traceability
  • Provided with DQ, IQ, OQ, PQ documentation
  • Validation ports provided for temperature mapping as standard supply. (On customer request)

Salient Features

  • Automatic steam exhaust at the end of test cycle
  • Fitted with solenoid valve for automatic steam exhaust
  • Initial air purging cycle
  • Single chamber for steam and water
  • Working chamber fabricated from S.S. – 304
  • Exterior body is fabricated from S.S. - 304
  • Lid, flange & bottom sheet also made of stainless steel.
  • Joint less silicon gasket
  • Heavy duty industrial flange heater (As per selected size)
  • Microprocessor based Digital Temperature Indicator cum Controller
  • PID Controller Controls temperature/pressure precisely at set value
  • User adjustable in-built digital timer
  • Pressure range                   : 15 to 22 PSI, factory set at 15 PSI
  • Temperature Range          : 121°C to 125 °C
  • Temperature Accuracy     : ± 0.5 °C
  • Temperature sensor         : PT-100
  • Lid fitting pressure gauge : 0-30 PSI
  • Hydraulically tested at      : 60 PSI
  • Safety valves                       : 02 Mechanical Valves, 01 Manual release valve
  • Supplied with Calibration certificate with traceability
  • Provided with DQ, IQ, OQ, PQ documentation
  • Validation ports provided for temperature mapping as standard supply. (On customer request)

Technical Specifications

  • Low water level heater safeguard.
  • Low water level cut off
  • Safety high pressure release valve (Spring loaded mechanical valves)
  • Safety high temperature cut off.

Optional Accessories at extra cost

  • 21-CFR PC Software with connectivity
  • Basket made of thick S.S. Wire mesh rods
  • LCD Smart programmable graphic controller
  • On site validation
  • Dot matrix printer
  • Radial Locking system

Fully Automatic models Available in following sizes

Inner chamber size (cms) (D x H) Overall dimensions (cms) (D x W x H) No of Basket Chamber capacity (Liters) Power consumption (Kw) Approximate Weight (Kgs) Fully automatic Model (EIE-206GFA)
30 x 50 52 x 45 x 64 1 35 3.0 45 EIE-206GFA35
35 x 55 57 x 50 x 72 1 53 3.0 52 EIE-206GFA53
45 x 60 67 x 60 x 82 1 95 4.0 98 EIE-206GFA95
45 x 75 67 x 60 x 97 1 119 4.0 115 EIE-206GFA119
55 x 75 82 x 75 x 97 1 178 6.0 135 EIE-206GFA178
55 x 90 82 x 75 x 125 1 213 6.0 175 EIE-206GFA213

D: Digital   |   FA: Fully Automatic   |   G: GMP

Semi Automatic models Available in following sizes

Inner chamber size (cms) (D x H) Overall dimensions (cms) (D x W x H) No of Basket Chamber capacity (Liters) Power consumption (Kw) Approximate Weight (Kgs) Semi automatic Model (EIE-206PSA)
30 x 50 52 x 45 x 64 1 35 3.0 45 EIE-206PSA35
35 x 55 57 x 50 x 72 1 53 3.0 52 EIE-206PSA53
45 x 60 67 x 60 x 82 1 95 4.0 98 EIE-206PSA95
45 x 75 67 x 60 x 97 1 119 4.0 115 EIE-206PSA119
55 x 75 82 x 75 x 97 1 178 6.0 135 EIE-206PSA178
55 x 90 82 x 75 x 125 1 213 6.0 175 EIE-206PSA213

D: Digital   |   P: Powder coating   |   SA: Semi Automatic
