Rotary shaking machine

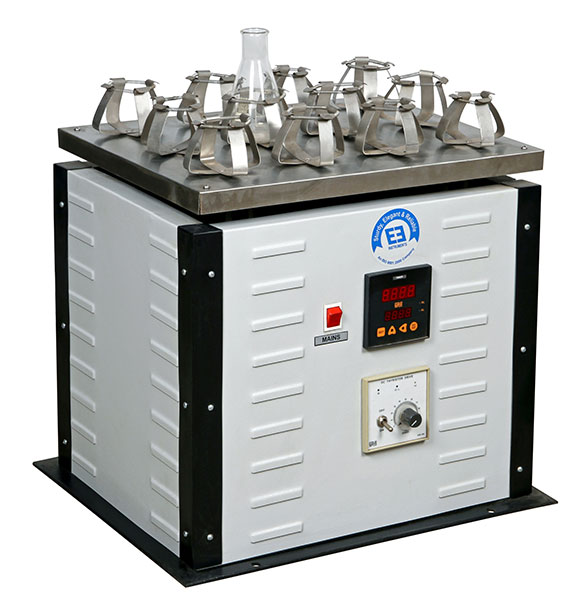

Rotary shaking machine (For flasks) (EIE – 113)

Applications

EIE - Rotary flask shakers are ideal for mixing and development of cultures, chemicals, solvents, and assays etc. in Microbiological, Cell Culture & Life Science laboratories. These are suitable for shaking in Erlenmeyer flasks.

Salient Features

Compact bench type table model.
Aesthetic exterior appearance
Easy to handle and clean design
The body is mounted on heavy duty M.S. angle-iron frame, making it rigid and sturdy for smooth operation
The top platform is equipped with rubber discs, so as to hold Erlenmeyer Flasks of different capacities
To enable orbital circular motion, the platform is mounted on ball bearing crankshafts.
The driving mechanism is enclosed in a mild steel sheet cabinet - powder coated.
The shaker is fitted with DC Motor & precise electronic speed regulator.
DC Motor ensures continuous work and precise speed control.
Step-less electronic frequency control ensures gentle start and maintains preset speed.
Compact counter balanced drive mechanism ensures high stability and reliability even in continuous operation & uneven load distribution.
Universal Platform to accommodate interchangeable clamps of assorted sizes for different capacity of flasks
Entire unit is standing on rubber feet to assure its stationary position while in operation.
Automatic restart at preset speed in case of power failure

Technical Specifications

Shaker Construction : Single wall construction
Top Plate : Fabricated from polished stainless steel material S.S. - 304 grade
Exterior body : Fabricated from Mild steel material
Paint : Powder coating in attractive shades
Shaking : Achieved by DC motor with DC Drive
Motor RPM : 50 - 200 RPM (Shaking speed)
Motor speed display : Digital RPM Indicator (Shaking speed display)
Speed control : By electronic Speed Regulator - DC Drive
Shaking racks material : Manufactured from polished stainless steel material S.S. - 304 Grade
Power consumption : 0.5 KW
Operates on : 230 Volts, 50 Hz, Single phase, AC Supply

Available in following sizes

To hold capacity	Platform size	Product Code
9 flasks of 250 ml	12” x 12”	EIE-113P9
16 flasks of 250 ml	18” x 18”	EIE-113P16
20 flasks of 250 ml	24” x 24”	EIE-113P20
36 flasks of 250 ml	36” x 36”	EIE-113P36
81 flasks of 250 ml	48” x 48”	EIE-113P81
