Refractory furnace

Refractory furnace (EIE – 108)

Standard Model (EIE – 108DP)

Inner Chamber made of Ceramic material with Muffle pattern for heating elements & Outer body is fabricated from CRC Sheet, Powder coated in attractive shades

GMP Model (EIE – 108DG)

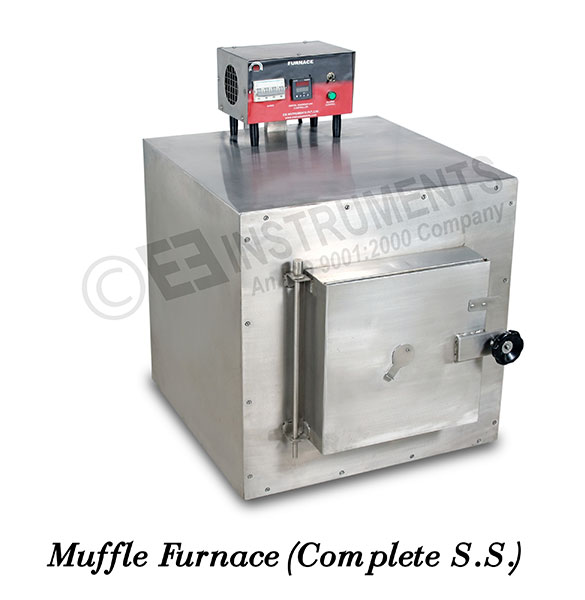

Inner Chamber made of Ceramic material with Refractory pattern for heating elements & Outer body is fabricated from S.S.304 matt finished material.

Applications

Particle size distribution

Salient Features

Ceramic fiber wool insulation to reduce weight and size of furnace.
Less heat up time is
Nominal heat-loss resulting in power saving
Built in vent port for removal of noxious gases etc.
Provision of hole with cover in the furnace door to insert temp sensor for calibration purpose
Construction : CRC sheet - attractively powder coated
Max Temperature : 1200°C
Working Temperature : 1150°C
Temperature control : Dual display microprocessor based Digital temperature indicator cum controller
Temperature Sensor : K - type sensor
Heating elements : KANTHAL A-1 wire in coil form placed in the Elements ribs & easily replaceable
Circuit Wiring : As per CE Norms
Operation on : 220/230 Volts, Single phase, AC Supply
Available in following sizes

Selection Guide

Inner chamber size (mm) (H x W x D)	Power consumption (Kw)	Approximate Weight (Kgs)	Digital Model Numbers (EIE-108DP)	Digital GMP Model Numbers (EIE-108DG)
225 x 100 x 100 (9” x 4” x 4”)	1.5	60	EIE-108DP2.25	EIE-108DG2.25
250 x 125 x 125 (10” x 5” x 5”)	2.0	71	EIE-108DP4	EIE-108DG4
300 x 150 x 150 (12” x 6” x 6”)	3.0	82	EIE-108DP7	EIE-108DG7
300 x 200 x 200 (12” x 8” x 8”)	5.0	115	EIE-108DP12	EIE-108DG12
450 x 225 x 225 (18” x 9” x 9”)	6.0	125	EIE-108DP23	EIE-108DG23
