Photostability Chamber Manufacturers

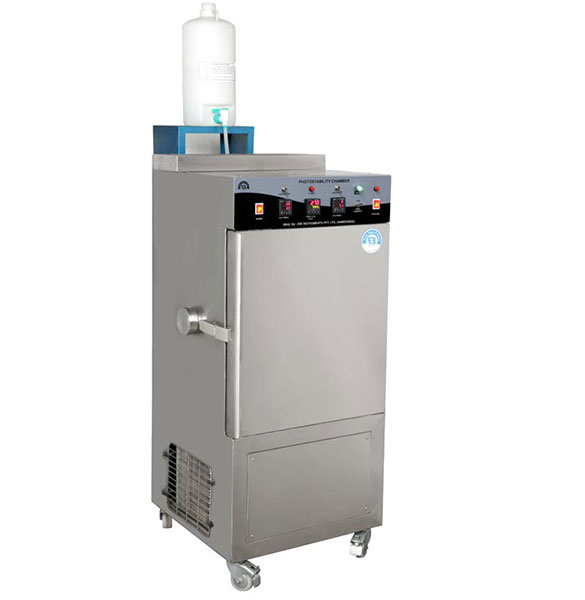

Photostability Chamber (EIE – 116)

Standard Model (EIE – 106RP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 106RG)

Inner Chamber made of mirror Polished Stainless Steel (S.S. 316) material & Outer body with Matt finished S.S. 304 Material

Salient Features

CE Certified
Double wall construction
Fulfills storage conditions of 25° C - 60% RH, 40° C - 75% RH, 30° C - 65% RH, 25° C - 40% RH, 30° C - 35% RH
Designed for testing product shelf – life, Packing and Electronic test.
Specially designed to meet ICH, WHO & USFDA requirements.
Full size polycarbonate sheet inner door to inspect samples without affecting the control parameters.
Electrical wiring as per CE Compliances
Illuminated working area
User friendly and tactfully designed chamber door and locking mechanism
Forced air circulation for uniform temperature and RH Distribution
Ensures smooth air-flow pattern to improve the Temp & Humidity distribution across the chamber
U-Shaped tubular heaters as heating element.
Unit mounted on castor wheels for easy movement.
Uniformity module with 4 + 4 RH & Temp Sensors (Optional)
Password protected door access and monitoring (Optional)
GSM module for SMS Alert (Optional)
Serial port for PC interface with 21-CFR Compliant software (Optional software)
Standby Humidity control system and Standby refrigeration system (Optional)

Insulation

70mm polyurethane insulation (PUF)/ fiberboard to ensure thermal loss

Humidity System

Non-condensing type Steam injection system & reservoir tank with water level arrangement with indicator.

Cooling System

Hermetically sealed compressor, which is CFC free and eco-friendly, utilizes the refrigerant (R-134A gas) to maintain chamber temperature within specified range.

Technical Specifications

Temperature Range : 20 °C to 60 °C
Temperature Accuracy : ± 0.2 °C
Temperature Uniformity : ± 1°C
Humidity Range : 40% RH to 95% RH
Humidity Accuracy : ± 2% RH
Humidity Uniformity: ± 3% RH
Supply : 230V Ac, 50 Hz, Single Phase

Trays for samples

Removable perforated trays
Can withstand heavy load
Offer better air circulation

Safety Features

High temperature safety cut off
Low water level boiler cut off
Electrical overload cut off
Time delay for compressor switch ON
Electrical circuit breaker

Optional accessories at extra cost

21-CFR Compliance software with PC Communication
Highly advanced HMI & PLC Control system
GSM Alert through SIM Card
Data logger with 4 temperature + 4 Humidity sensors
Spare RH Sensor for validation purpose
Spare PT-100 Sensor for validation purpose
Standby Humidity System
Standby Refrigeration System
Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
On-Site Validation (mapping) for 24 hours on Empty, Half and Full load condition

Technical Specifications

Working chamber sizes (CM) (H x D x W)	Overall dimensions (CM) (H x D x W)	Volume (Liters)	No of trays	Power ratings (KW)	Weight (KG)	Digital Model Numbers (EIE-116RP)	Digital GMP Model Numbers (EIE-116RG)
45 x 45 x 45 cm	119 x 74 x 66	92	2	1.5	115	EIE-116RP92	EIE-116RG92
70 x 50 x 50 cm	145 x 76 x 71	175	3	1.5	135	EIE-116RP175	EIE-116RG175
60 x 60 x 60 cm	135 x 84 x 81	216	3	2.0	150	EIE-116RP216	EIE-116RG216
90 x 60 x 60 cm	165 x 84 x 81	324	3	2.0	157	EIE-116RP324	EIE-116RG324
125 x 60 x 60 cm	201 x 84 x 81	450	4	2.5	175	EIE-116RP450	EIE-116RG450
125 x 70 x 70 cm	201 x 94 x 91	612	4	2.5	198	EIE-116RP612	EIE-116RG612
125 x 80 x 80 cm	201 x 104 x 102	800	5	3.0	220	EIE-116RP800	EIE-116RG800
125 x 90 x 90 cm	201 x 114 x 112	1000	5	3.0	245	EIE-116RP1000	EIE-116RG1000
