Orbital Incubator Shaker Manufacturers

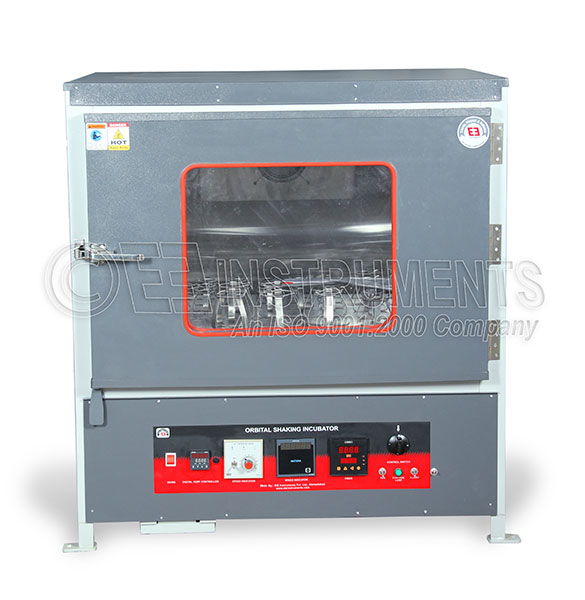

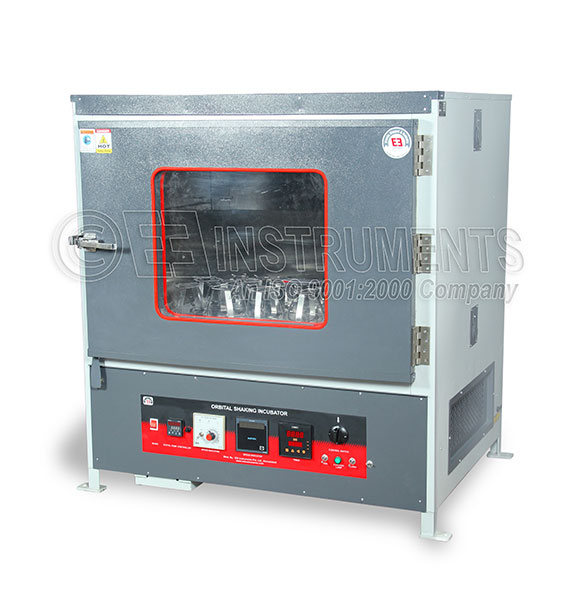

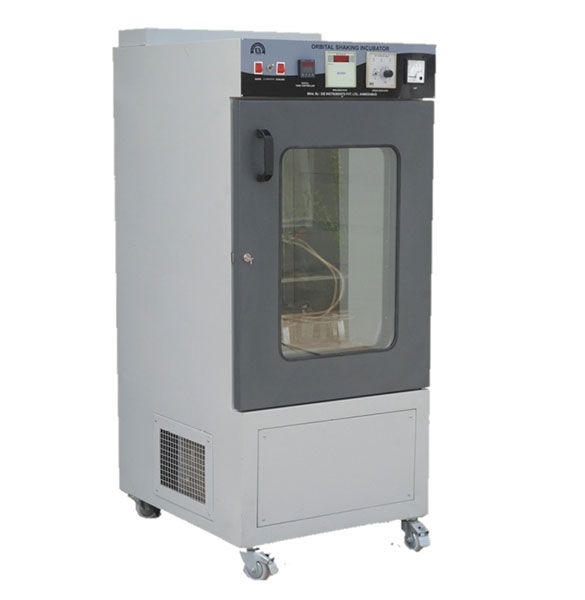

Orbital Shaking Incubator (EIE – 203)

Standard Model (EIE – 203DP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 203DG)

Most ideal for precise temperature control and simultaneous shaking applications required in fermentations studies, enzyme reaction s, life sciences, tissue culture and biotechnology, research labs.

Applications

Used for Media Preparation & Culture growth at temperatures of 22.5°C (±2.5°C) & 32.5°C (± 2.5°C) in Microbiology or ARD labs across the world.

Salient Features

Thermal Insulation : PUF insulation
Insulation thickness : 70 mm
Temperature Range : 5 °C to 60 °C
Illumination : Fluorescent Tube light
Fluorescent light watts : 11 Watts
Heating source : U-shaped S.S. Tubular heaters
Refrigeration : CFC free EMERSON compressor utilizing R-134a eco friendly refrigerant
Observation : Inner transparent acrylic door for quick viewing and retrieval
Door lock : Ergonomic and secured key lockable door lock
Shaking : Achieved by PMDC motor with DC Drive
Motor RPM : 50 - 250 RPM (Shaking speed)
Motor speed display : Digital RPM Indicator (Shaking speed display)
Speed control : By Rotary Potentiometer
Feet on : Castor wheels (For easy mobility)
Electrical : 230 Volt, 15A, 50 Hz, AC Supply
Interchangeable S.S. tray with spring loaded S.S. Lotus clamps for holding Erlenmeyer flasks.
Supplied complete with Calibration certificate , IQ-OQ-PQ Documents and test report
Calibration certificate with NPL Traceability for temperature sensor and Digital controller

Air Circulation

Temperature is maintained by a quiet running blower for better air circulation throughout the chamber. Forced air circulated vertically down and re-circulated throughout the chamber for uniform temperature distribution.

Heating & Cooling System

Long lasting U-Shaped tubular heaters used as heating element. Hermetically sealed compressor CFC free compressor (134 A gas) coupled with evaporation coil and condenser.

Safety Features

High temperature safety cut off (Thermostat)
Electrical overload cut off (Fuse 10 Amp)
Time delay for compressor switch ON

Technical Specifications

To hold capacity	Digital Model (EIE-203DP)	Digital Model (EIE-203DG)
9 flasks of 250 x 500 ml	EIE-203DP9	EIE-203DG9
16 flasks of 250 x 500 ml	EIE-203DP16	EIE-203DG16
20 flasks of 250 x 500 ml	EIE-203DP20	EIE-203DG20
36 flasks of 250 x 500 ml	EIE-203DP36	EIE-203DG36

D: Digital | P: Powder coating | G: GMP

Note: Custom sizes for accommodation of different capacity flasks are also available.

Optional accessories at extra cost

21-CFR Compliance software with PC Communication
Highly advanced HMI & PLC Control system
GSM Alert through SIM Card
Data logger with 4 temperature sensors
Spare PT-100 Sensor for validation purpose
Standby Refrigeration System
On-Site Validation (mapping) for 24 hours on Empty, Half and Full load condition
