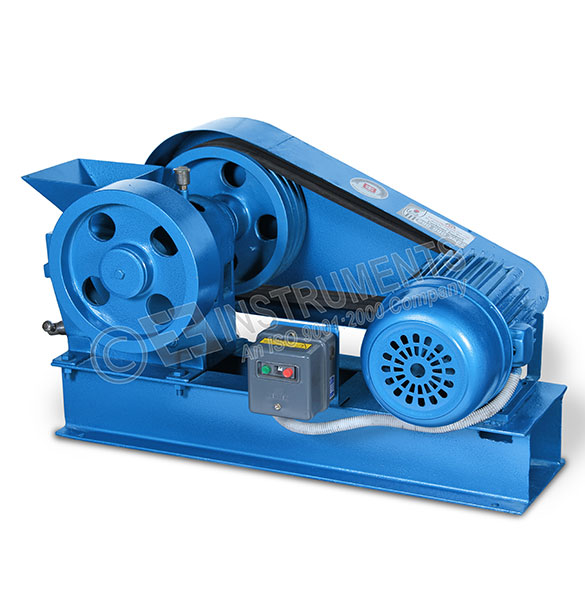

Jaw crusher

To speed crushing process of aggregate, iron ores, minerals, coals, coke, chemicals and other similar materials

Compact and Rugged construction
Identical choice for general laboratory or small pilot plant
Easy cleaning & Maintenance
Extremely fast & efficient primary crushing
Two jaws of manganese steel are provided in the jaw crusher.
Moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum.
Combination of forward and downward strokes with a rocking action exerts pressure on the coarse material to pass through the jaws.
Fitted with hopper at the top for feeding materials.
Smooth jaws ensure a uniform product output
Start & Stop push button, overload protection for motor

Jaw size	Max size of feed	Product discharge size	Capacity	Operation
100 x 150 mm (4” x 6”)	50 mm (Approx)	6-18 mm adjustable	100 kg/hour	440V, 3 phase, 50Hz, A.C. Supply
150 x 200 mm (6” x 8”)	80 mm (approx)	12-22 mm adjustable	200 kg/hour	440V, 3 phase, 50Hz, A.C. Supply
200 x 300 mm (8” x 12”)	100mm (approx)	12-50 mm adjustable	500 kg/hour	440V, 3 phase, 50Hz, A.C. Supply
