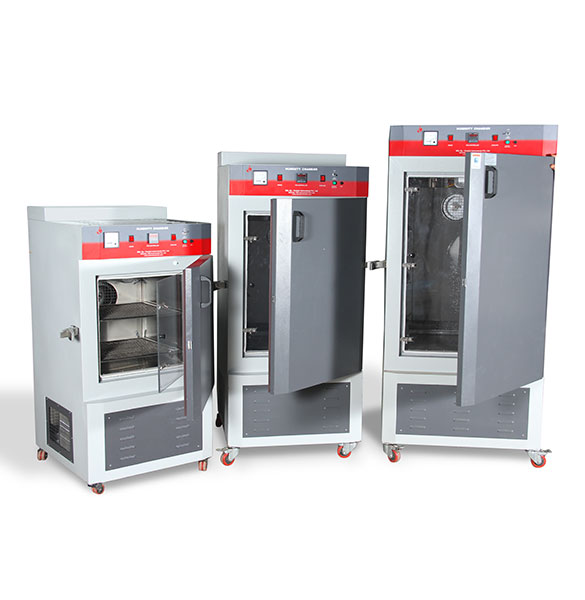

HOT and COLD Chamber (EIE – 115BA)

Standard Model (EIE – 115PBA)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 115GBA)

Inner Chamber made of mirror Polished Stainless Steel (S.S. 316) material & Outer body with Matt finished S.S. 304 Material

Salient Features

  • Temperature controlled cyclic chamber
  • Digital Microprocessor based temperature indicator cum controller
  • Programmable controller with time and temperature programming.
  • Provided with specimen protection to protect samples from high temperature
  • Provided with tower lamp for process indication

Technical Specifications

  • Model : Floor standing with castor wheels
  • Construction : Double walled construction
  • Insulation : Glass wool and Puff Insulation
  • Inner chamber : S.S. - 304 material
  • Exterior body : Mild Steel Material
  • Paint : Powder coated
  • Temp. Range : - 20°C to 100°C
  • Temp Accuracy : ± 1°C
  • Temp Controller : Microprocessor based PID controller with RAMP/SOCK timer
  • Safety device : Adjustable low and high temperature safety devices.
  • Cooling rate : 1°C/2°C/3°C per minute
  • Heating rate : 1°C/2°C/3°C per minute
  • Trays : Stainless steel trays
  • Gasket : Silicon gasket
  • Door handle : Ergonomic door handle and lock
  • Blower : For forced air circulation
  • Observation : Facility for viewing inner chamber
  • Illumination : For viewing test space
  • Refrigeration : CFC - free cascade refrigeration
  • Power : 230V, 50Hz, Single Phase
  • Mobility : On castor wheels

Technical Specifications

Working chamber sizes (CM) (H x D x W) Overall dimensions (CM) (H x D x W) Volume (Liters) No of trays Power ratings (KW) Weight (KG) Digital Model Numbers (EIE-115PBA) Digital GMP Model Numbers (EIE-115GBA)
45 x 45 x 45 cm 119 x 74 x 66 92 2 2.0 115 EIE-115PBA92 EIE-115GBA92
70 x 50 x 50 cm 145 x 76 x 71 175 3 2.5 135 EIE-115PBA175 EIE-115GBA175
60 x 60 x 60 cm 135 x 84 x 81 216 3 2.5 150 EIE-115PBA216 EIE-114GBA216
90 x 60 x 60 cm 165 x 84 x 81 324 3 3.0 157 EIE-115PBA324 EIE-115GBA324
125 x 60 x 60 cm 201 x 84 x 81 450 4 3.5 175 EIE-115PBA450 EIE-115GBA450
125 x 70 x 70 cm 201 x 94 x 91 612 4 3.5 198 EIE-115PBA612 EIE-115GBA612
125 x 80 x 80 cm 201 x 104 x 102 800 5 3.0 220 EIE-115PBA800 EIE-115GBA800
125 x 90 x 90 cm 201 x 114 x 112 1000 5 3.0 245 EIE-115PBA1000 EIE-115GBA1000

BA: Below Ambient   |   P: Powder coating   |   G: GMP
