ElectromagneticSieveShaker - EIEPHARMA

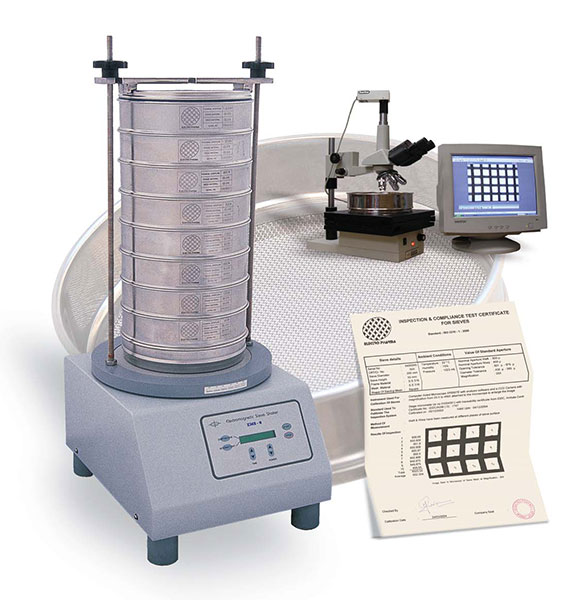

Electromagnetic Sieve Shaker (TM-)

Applications

Used for particle size analysis in material testing laboratories, Civil engineering, Pharmaceutical Industries, Tiles Ceramic Industries, Cement industries, Education institutes etc

Salient Features

  • Vibratory actions move the sample all over the sieve in a unique way producing faster & more efficient sieving
  • Noise less, simple, advanced and accurate sieving operations
  • Tri-dimensional shifting motion
  • Continuous and Intermittent mode of shifting
  • Isolation of vibration from the work surface
  • Can accommodates 08 nos. sieves of 200mm diameter
  • 40 x 4 character alpha-numerical LCD display
  • Unit has 15 levels of amplitude upto a maximum of 2mm as recommended by USP.
  • The top plate of the sieve shaker has clearly marked calibrated lines to aid visual inspection of the amplitude.
  • Fitted with a special clamping device to ensure that the sieves are held firmly and allows them to be quickly removed and replaced.
  • Closed loop control of amplitude and validation independent of the load
  • Very low noise operation with low maintenance.
  • iTIME (Programmable from 10-99 seconds) for proper shifting of matter

Technical Specifications

Model EMS-8 EMS-8 PLUS
Dry Sieving Standard Standard
Mode of operation Continuous and Intermittent Continuous and Intermittent
Intermittent operation At interval (0.5 seconds) At interval (0.5 seconds)
iTime Mode ---- 1 sec pause in sieving process after set interval of 10-99 seconds
Capacity Upto 8 sieves of 200mm Dia x 50mm H
Upto 16 sieves of 100mm Dia x 25mm H
Upto 8 sieves of 200mm Dia x 50mm H
Upto 16 sieves of 100mm Dia x 25mm H
Shake time Programmable from 1min – 99 min Programmable from 1min – 99 min
Display 16 x 2 characters LCD 40 x 4 characters alphanumeric LCD
Power Level Programmable (From 5 to 20) Programmable (From 5 to 20)
Noise Level <61 dB without sieves at maximum amplitude
<71 dB with sieves & material at maximum amplitude
40 x 4 characters alphanumeric LCD
Power 220/230 Volts AC, 50 Hz, 600 VA 220/230 Volts AC, 50 Hz, 600 VA
Dimensions 312mm x 339mm x 270mm 312mm x 339mm x 270mm
Weight 50 Kgs (Without Sieves) 50 Kgs (Without Sieves)
