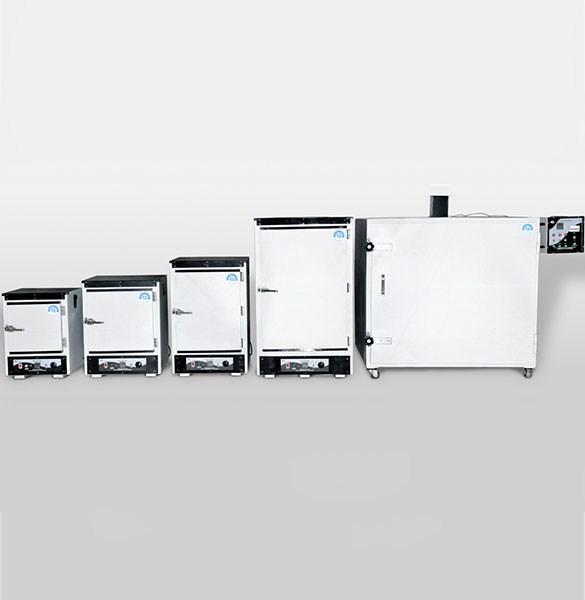

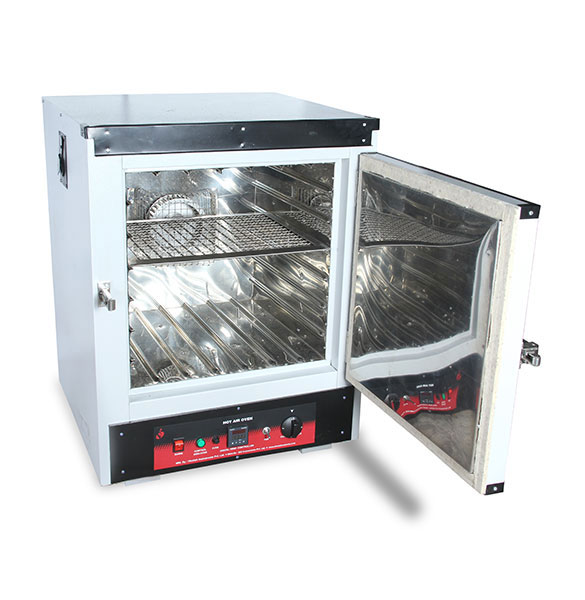

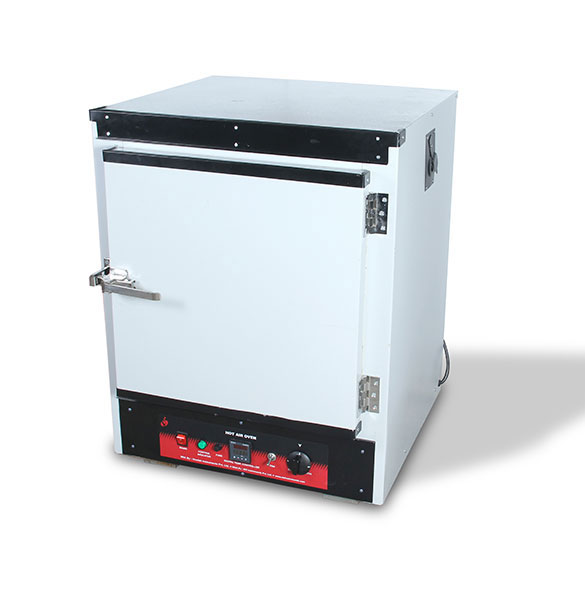

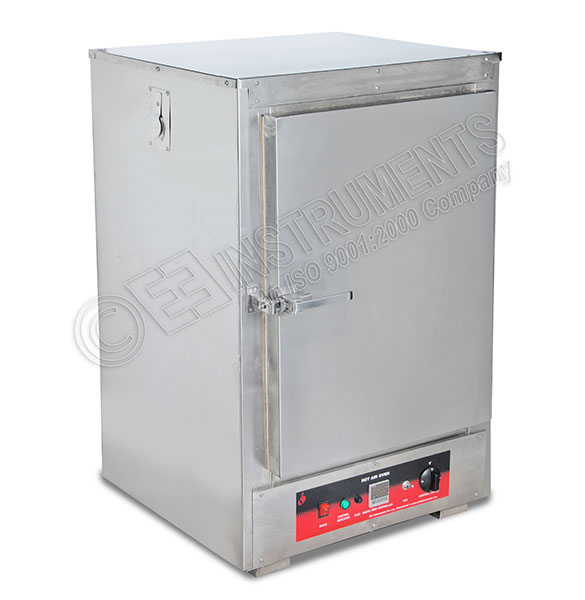

Drying Oven (Laboratory Hot Air Oven) (EIE – 101)

Standard Model (EIE – 101DP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 101DG)

Inner Chamber made of mirror polished Stainless Steel (S.S.316) material & Outer body is fabricated from S.S.304 matt finished material.

Salient Features

  • Double walled design
  • Thick glass wool insulation to prevent heat loss
  • Microprocessor based AUTO-TUNE PID Digital Temp Controller cum indicator
  • Temperature range : 50 °C – 250 °C
  • Temperature Accu : ± 0.5 °C
  • Temperature display : Digital LED Display
  • Operates on : 230 Volts, 50 Hz, Single phase, AC Supply
  • Special heavy duty stainless steel lock and door hinges
  • Heavy duty stainless steel trays for sample placement
  • Forced air circulation blower for Uniform Temperature Distribution
  • Supplied complete with Calibration certificate , IQ-OQ-PQ Documents and test report
  • Calibration certificate with NPL Traceability for temperature sensor and Digital controller
  • Available in following sizes

Selection Guide

Inner chamber size(cms) (D x W x H) Overall dimensions (cms) (D x W x H) No of trays Chamber capacity (Liters) Power consumption (Kw) Approx Weight (Kgs) Digital Model Numbers (EIE-103DP) Digital GMP Model Numbers (EIE-101DG) Thermostatic Model Numbers (EIE-101TP)
30 x 30 x 30 52 x 45 x 64 1 27 1.0 45 EIE-101DP27 EIE-101DG27 EIE-101TP27
35 x 35 x 35 57 x 50 x 72 1 64 1.0 52 EIE-101DP64 EIE-101DG64 EIE-101TP64
45 x 45 x 45 67 x 60 x 82 2 92 1.5 72 EIE-101DP92 EIE-101DG92 EIE-101TP92
45 x 45 x 60 67 x 60 x 97 2 121 1.5 78 EIE-101DP121 EIE-101DG121 EIE-101TP121
60 x 60 x 60 82 x 75 x 97 3 216 2.0 110 EIE-101DP216 EIE-101DG216 EIE-101TP216
60 x 60 x 90 82 x 75 x 125 3 324 2.5 148 EIE-101DP324 EIE-101DG324 EIE-101TP324

D : Digital, T : Thermostatic, G : GMP, P : Powder coating Note : Customized sizes are also available

Optional accessories at extra cost

  • 21-CFR (PART – 11) Compliance dedicated PC Software
  • Data Logger – 4/8/16 channels with sensors
  • Audio visual alarm for temperature Overshoot/Undershoot
  • Timer facility
  • Programmable controller with RAMP Setting facility
