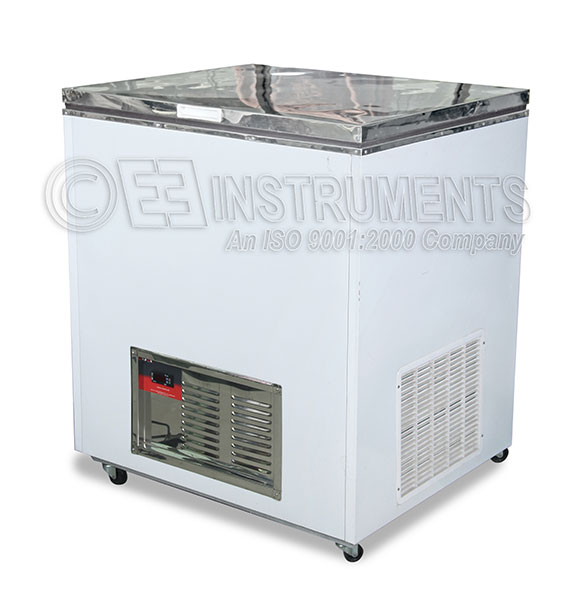

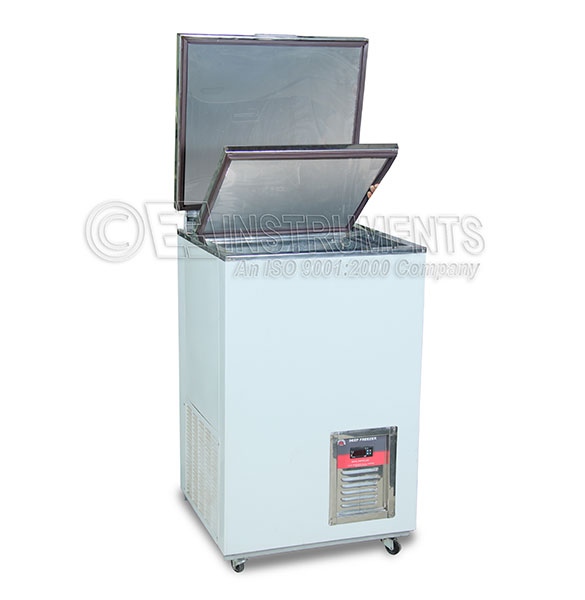

Deep Freezer (Horizontal)

Deep Freezer (Horizontal) (EIE – 205)

Standard Model (EIE – 205HP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 205HG)

Most ideal for precise temperature control and simultaneous shaking applications required in fermentations studies, enzyme reaction s, life sciences, tissue culture and biotechnology, research labs.

Abbreviation:

EIE-205HP : 0 °C to -26 °C : HP- Horizontal, Powder - coated body
EIE-205LHP : -20 °C to -45 °C : LHP - Low Temp, Horizontal, Powder - coated body
EIE-205ULHP : -40 °C to -86 °C : ULHP - Ultra Low Temp, Horizontal, Powder - coated body

Technical Specifications

Inner chamber size (cms) (H X W X D)	Chamber capacity (Liters)	Inner Door	Inner Tray	Compressor Quantity	Model Nos. (EIE-205HP/EIE-205LHP/EIE-205ULHP)	Gasket System	Temperature Range
70 X 35 X 40	100	4	3	2	EIE-205ULHP100	Triple Magnetic Gasket System	-40 °C to -86 °C
110 X 40 X 40	170	5	4		EIE-205ULHP170
110 X 50 X 50	270	5	4		EIE-205ULHP270
110 X 55 X 55	325	5	4		EIE-205ULHP325
110 X 60 X 60	395	5	4		EIE-205ULHP395
70 X 35 X 40	100	4	3	1	EIE-205LHP100	Double Magnetic Gasket System	-20 °C to -45 °C
110 X 40 X 40	170	5	4		EIE-205LHP170
110 X 50 X 50	270	5	4		EIE-205LHP270
110 X 55 X 55	325	5	4		EIE-205LHP325
110 X 60 X 60	395	5	4		EIE-205LHP395
70 X 35 X 40	100	4	3	1	EIE-205HP100	Single Magnetic Gasket System	-0 °C to -26 °C
110 X 40 X 40	170	5	4		EIE-205HP170
110 X 50 X 50	270	5	4		EIE-205HP270
110 X 55 X 55	325	5	4		EIE-205HP325
110 X 60 X 60	395	5	4		EIE-205HP395
