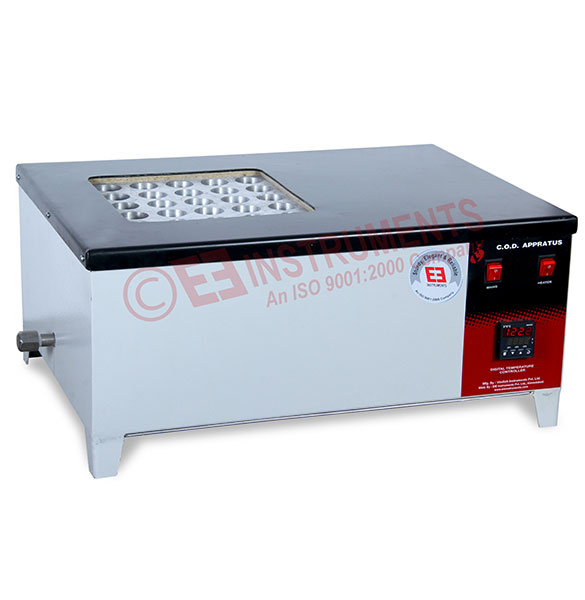

COD Digestion apparatus (EIE – 217DP)

Introduction

Used to monitor and digest the wastewater influent and effluent, industrial process water, blend of chemicals and more. Primarily used by Pollution Control Labs

Construction Details

  • Double walled construction
  • Effective insulation for minimum heat loss
  • Outer cabinet of mild steel material duly powder coated
  • Aluminum Block with holes is used to hold 6 nos COD tubes.
  • Aluminum Block is heated to maintain temperature up to 180° C
  • Solid state Digital Temperature Controller, appropriate heater & insulation selection assure uniformity in all the samples.
  • Selectable timer up to 120 min/h alarm is provided to set the digestion period (Refluxing).
  • After digestion, analyze the sample with titrimetric method.
  • Supplied without chemicals and accessories for Titration (Has to be ordered separately)
  • Supplied with 6 sets of Glassware

Technical Specifications

  • Temp Range : Above ambient to 180° C or higher
  • Temp Resolution : 0.1° C
  • Display : Digital 12mm Red LED
  • Control : Digital Electronic Temperature Controller
  • Heater Rating : 750 Watts
  • Sensor : PT-100
  • Timer : Selectable 15, 30, 45, 60, 90 or 120 minutes with alarm
  • Hole Size : 40mm Diameter x 80mm Depth
  • Glass Tube : 38mm diameter, 06 no (2 x 3 rows)
  • Sample Volume : 20 ml Each
  • Overall size : 21 x 12 x 11"
  • Net weight : 21 kilograms

Selection guide

No of test positions 06 - Holes 15 – Holes
Model Nos. EIE-217DP6 EIE-217DP15

D: Digital   |   P: Powder Coated   |   S :Stainless Steel

Optional Accessories

  • Spare COD Tube
  • Spare Air condenser
  • COD Tube Stand (for 6 tubes)
  • Air Condenser Stand (for 6 tubes)
  • S.S. Bath with inlet and outlet for Tap water - facilitates rapid cooling of Glassware
