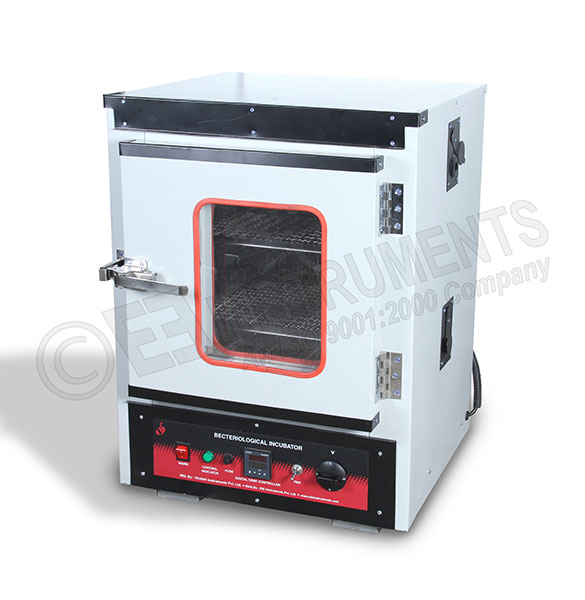

Bacteriological Incubator (EIE – 201)

Standard Model (EIE – 201DP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 201DG)

Inner Chamber made of mirror polished Stainless Steel (S.S.316) material & Outer body is fabricated from S.S.304 matt finished material.

Salient Features

  • Double walled design
  • Thick glass wool insulation to prevent heat loss
  • Microprocessor based AUTO-TUNE PID Digital Temp Controller cum indicator
  • Temperature range : 50 °C – 250 °C
  • Temperature Accu : ± 0.5 °C
  • Temperature display : Digital LED Display
  • Operates on: 230 Volts, 50 Hz, Single phase, AC Supply
  • Special heavy duty stainless steel lock and door hinges
  • Heavy duty stainless steel trays for sample placement
  • Observation window to observe the sample without opening chamber door
  • Forced air circulation blower for Uniform Temperature Distribution
  • Supplied complete with Calibration certificate , IQ-OQ-PQ Documents and test report
  • Calibration certificate with NPL Traceability for temperature sensor and Digital controller
  • Available in following sizes

Technical Specifications

Inner chamber size (cms) (D x W x H) Overall dimensions (cms) (D x W x H) No of trays Chamber capacity (Liters) Power consumption (Kw) Approximate Weight (Kgs) Digital Model Numbers (EIE-201DP) Digital GMP Model Numbers (EIE-201DG)
30 x 30 x 30 52 x 45 x 64 1 27 1.0 45 EIE-201DP27 EIE-201DG27
35 x 35 x 35 57 x 50 x 72 1 64 1.0 52 EIE-201DP64 EIE-201DG64
45 x 45 x 45 67 x 60 x 82 2 92 1.5 72 EIE-201DP92 EIE-201DG92
45 x 45 x 60 67 x 60 x 97 2 121 1.5 78 EIE-201DP121 EIE-201DG121
60 x 60 x 60 82 x 75 x 97 3 216 2.0 110 EIE-201DP216 EIE-201DG216
60 x 60 x 90 82 x 75 x 125 3 324 2.5 148 EIE-201DP324 EIE-201DG324

D: Digital   |   P: Powder coating   |   G: GMP

Note: Customized sizes are also available

Optional accessories at extra cost

  • 21-CFR Compliance software with PC Communication
  • Highly advanced HMI & PLC Control system
  • GSM Alert through SIM Card
  • Data logger with 4 temperature sensors
  • Spare PT-100 Sensor for validation purpose
  • On-Site Validation (mapping) for 24 hours on Empty, Half and Full load condition
